全伺服上吹600-7 PET吹瓶機機型特點TECHNICAL FEATURES
●密集型加熱節能型設計
Intensive Heating System,Power Saving
Economical Machine
●占地面積小
Space Saving Smart Machine
●可選擇排氣回收功能
Optional Air Recycle Use Function
●可直接連接罐裝機
Capable Of Connecting Filling Machine
●每腔瓶還加熱及吹瓶延時調整都可獨立控制
Preform Heating And Blowing Delay Individu-
ally Controlled

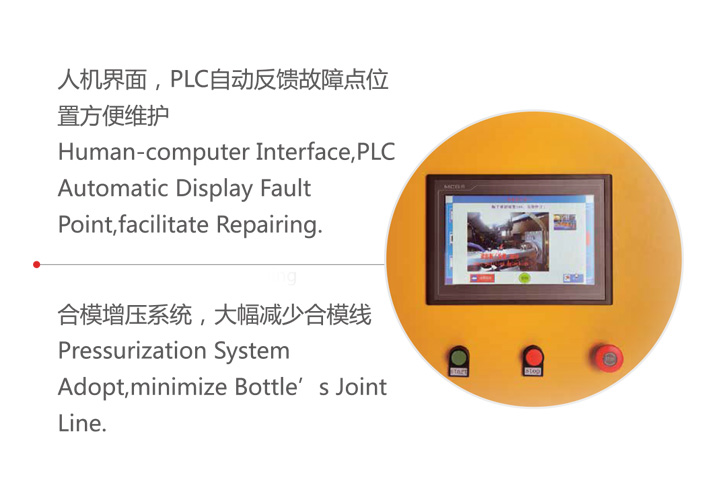

人機界面，自動反饋故障點位
置方便維護
Human-computer Interface,PLC
Automatic Display Fault
Point,facilitate Repairing.
合模增壓系統，大幅減少合模線
Pressurization System

Adopt,minimize Bottle's Joint Line

全伺服上吹600-7 PET吹瓶機機

Model No.型號??	AUD600-7	AUD1500-4	AUD2000-3
number of cavity 模穴數	7	4	3
clamping stroke 開模行程	90 mm	120 mm	130 mm
production 理論產量	14000pcs/hr	5000pcs/hr	3000pcs/hr
total power 總裝機容量	85kw	85kw	85 kw
actual power consumption 實際耗電量	40kw	40kw	40kw
pressure for blowing 允許吹氣壓力	35 kg	35 kg	35 kg
flow rate for blowing 吹氣用氣量	8m3	8m3	8m3
neck diameter 允許瓶口直徑	26-32 mm	26-32 mm	26-32 mm
max diameter 允許瓶身直徑	65 mm	90 mm	100 mm
max height 允許瓶身高度	230 mm	330 mm	330 mm
machine size LxWxH 機器尺寸	3×2.25×2.3 m	3.5×1.8×2.0 m	2.3×2.1×2.1 m
auto loader LxWxH 上料機構	3.0×3.0×3.0 m	3.0×3.0×3.0 m	3.0×3.0×3.0 m
machine weight 機器重量	4200 kg	4200 kg	4200 kg
